技术参数

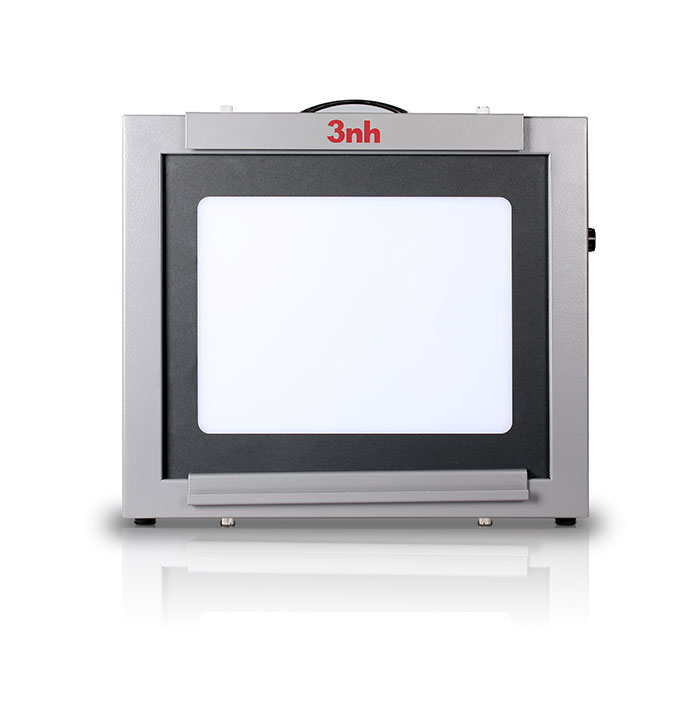

DNP标准颜色Viewer
是摄影机及静相摄影机的评价，调整用的光源装置。
能看由于高频荧光灯点灯方式的采用闪烁不定没有的画像。
方法:
光源: DNP标准颜色viewer油灯
(特殊荧光管10W×4个使用)
电源: AC100v50，60Hz
点灯方式: 高频点灯方式20KHz
演颜色性: 对各颜色演颜色评价点90以上
色温: (日本制CL-200测量)
使用温度: 10～40〓C
使用湿度: 80％以下(结露没有事)
外形尺寸: 375W×365H×165D m/m
亮度方面尺寸: 250W×190H m/m
海图尺寸: 320W×290H m/m
消耗功率: 80W
重量: 6.5kg/7.5kg
由于viewer包藏荧光油灯的差异的亮度方面的特性
对待说明
【1】 使用前
电源:AC电源100v，50Hz，60Hz共用
光源:DNP标准颜色viewer油灯 10W×4个
消耗功率:80W
【2】 使用
(1) AC100v的插座插入电源编码的插头。
※注意: AC100v以外的电源请别连接。
在海外利用时候，必定拜托您了变压器的使用。
变成弄错AC100v以外的电源连接的话被安上内部取的变压器的烧毁。
(2) ON电源开关。
(3) 以油灯点灯常温(20℃)点灯后15～20分稳定。
(4) 油灯不点灯的时候，向别的项目的大街电保安人员要求请求确认。
(5) 油灯的胫―王现象发生了的时候修好做电源开关3～4次ON，OFF。
【3】 油灯不点灯的时候
请在电保安人员确认。
(1) 插座AC100v通上电流。
(2) 插座插入viewer的插头。
(3) viewer的电源开关ON。
Viewer的油灯不点灯的时候，能考虑象下面一样的事
(1) 油灯2盏点灯的时候，变压器的一方的保险丝溶断做着。
(2) 油灯4盏是不点灯的时候，2台变压器的各々的保险丝溶断做着。
※注意: 上述(1)(2)AC100v以外的通电的时候发生。这变压器内部烧毁是原因。
变压器的交换变成必要。
【4】 与油灯的交换清扫
在平的台里(上)放置viewer从插座上请取下电源编码。
以下面的顺序进行卸载。
(1) 放松上面框框的硬币螺钉2处。
(2) 用双手举起50～60毫米上面框框的硬币螺钉方面推到前方的话上面框框偏离实体。
(3) 取下玻璃板和丙烯板。
※注意: 玻璃板因为有破裂请当心手手指。
(特别象用手手指不擦一样地请注意板边方面。)
■油灯交换
(1) 又，1年流逝的时候点灯2,000小时。
(2) 脱离用双手手指夹油灯的管端部使之转90〓。
■清扫工作
(1) 请在纱布中浸湿酒精擦去反射板表面，丙烯板和玻璃表面的污秽取。
(2) 清扫为了6个月～1年1次，正常保持色温，亮度无论如何拜托您了。
【5】 使用前
viewer因为使用着玻璃品请注意下面的事。
(1) 请别给(对)viewer实体给予大的冲击。
(2) 请别搁置对viewer表面沉重的东西。

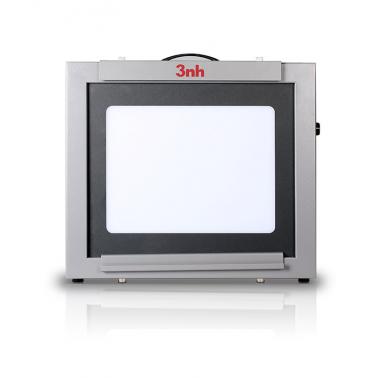

DNP Standard color Viewer
The DNP Standard color Viewer is a light source which enables you to
evaluateadjust videostill cameras. With its high-frequency Fluorescent
lighting method, it handles images without flicker.
Specification

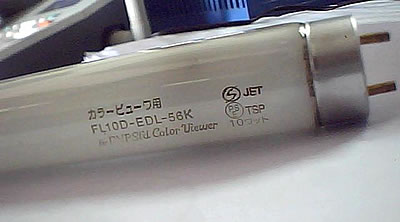

Light source: DNP Standard color Viewer lamp
(Four 10W dedicated fluorescent tubes are used)
Power supply: AC100V 50, 60Hz
Lighting method: High Frequency lighting method 20KHz
Color rendering: Over 90% rendering evaluation-point for each color
Color temperature: (Measured by 日本 CL-200)
Operating temperature: 10～40℃
Operating humidity: Below 80%(avoid dew)
Major diameter dimension: 375W×365H×165D m/m
Luminance plane dimension: 250W×190H m/m
Color chart dimension: 320W×290H m/m
Power consumption: 80W
Weight: 6.5kg/7.5kg

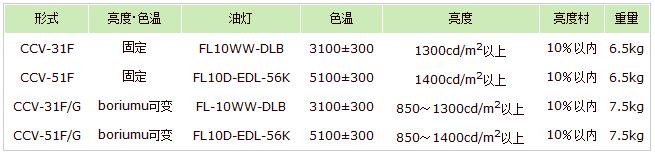

●The Luminance plane characteristics: according to the types of self-contained fluorescent lamp
Product Luminance Color Lamp Color Luminance Color matchingWeight
Type Temperature Temperature shift
CCV-31F Fixed FL10WW- 3100K±300 Over Within 10% 6.5kg
DLB 1300cd/m2
CCV-51F Fixed FL10D- 5100K±300 Over Within 10% 6.5kg
EDL-56K 1400cd/m2
CCV-31F/G Volume adjustable FL-10WW- 3100K±300 Over 850～ Within 10% 7.5kg
DLB 1300cd/m2
CCV-51F/G Volume adjustable FL10D- 5100K±300 Over 850～ Within 10% 7.5kg
EDL-56K 1400cd/m2
＊The color temperature if Luminance. Color Temperature Conversion Type viewer ranges over 50k according to the change of the Luminance.
＊The specification may change without notice
Operation Manual
【1】 Before using the product:
Power supply AC 100V, 50/60Hz shared
Light source 10W DNP Standard color Viewer Lamp (4)
Power consumption 80W
【2】 Using the DNP Standard color Viewer
(1) Plug the power cable of the product into AC100V
【Precautions】 Do not connect any power supply other than AC100V
If the other power supply connected by accident, the inverter inside
will burned out
(2) Turn on the power switch
(3) Lamp lights: the lamp light will stabilised after 15 to 20 minutes at the room temperature(20℃)
(4) If the lamp does not lit, call for Service Office for the confirmation as described on other documents.
(5) To suspend snaking of the lamp, press power switch 3 to 4 times [as ON/OFF].
【3】 If the light does not lit
Call for Service Office to confirm the following:
(1) AC 100V supplied to the wall socket.
(2) Plug the product into the wall socket.
(3) Turn the power supply switch of the product ON
Still the lamp does not lit: Consider the following:
(1) Two of the viewer lamps lit simultaneously, one of the fuses of the inverters has blowouts.
(2) Four of the viewer lamps does not light means that each of the fuses of the two inverters has blowouts.
【Precautions】 The above occurs if the applied power supply is not AC 100V.
Fuse bum out cause internal burnout of inverter. The burned inverter needs to replace.
【4】 How to replace the lampkeep it clean
Place the Viewer on the flat table,plug out the power supply cable from the wall socket.
Remove the used device in the following order:
(1) Unfasten the two of grub screws on the top frame.
(2) To remove the top frame from the main unit;
Holding 50 to 60 mm the grub screw of the top framepress it forward.
(3) Remove the glass plateacrylic plate.
【Precaution】 Glass plate easily breaksmay hurt your handsfingers.
Handle the edge of the plate with care not to scratch.
◆Replacing the lamps:
(1) When the lamps used over 2,000 hours or one year, it needs to replace.
(2) Remove the Lamp Tubes: Hold the edge of the Lamp Tubes,turn it 90 degree.
◆Cleaning the device:
(1) Impregnate alcohol to gauze then apply it onto the surface of the reflection plate / acrylic plate / glass surface to remove the dirt.
(2) Clean the device once in six months to one year to keep quality of the Color TemperatureLuminance.
【5】 Other Precautions
Handling the viewer needs the following precautions because it contains the parts using glass.
(1) Do not add strong impact on the viewer
(2) Do not put any heavy items on the surface of the viewer
